KingSong

KS - N14 Scooter

  • Sale
  • €750.00

Including Tax Shipping calculated at checkout.

KingSong N14 KSE

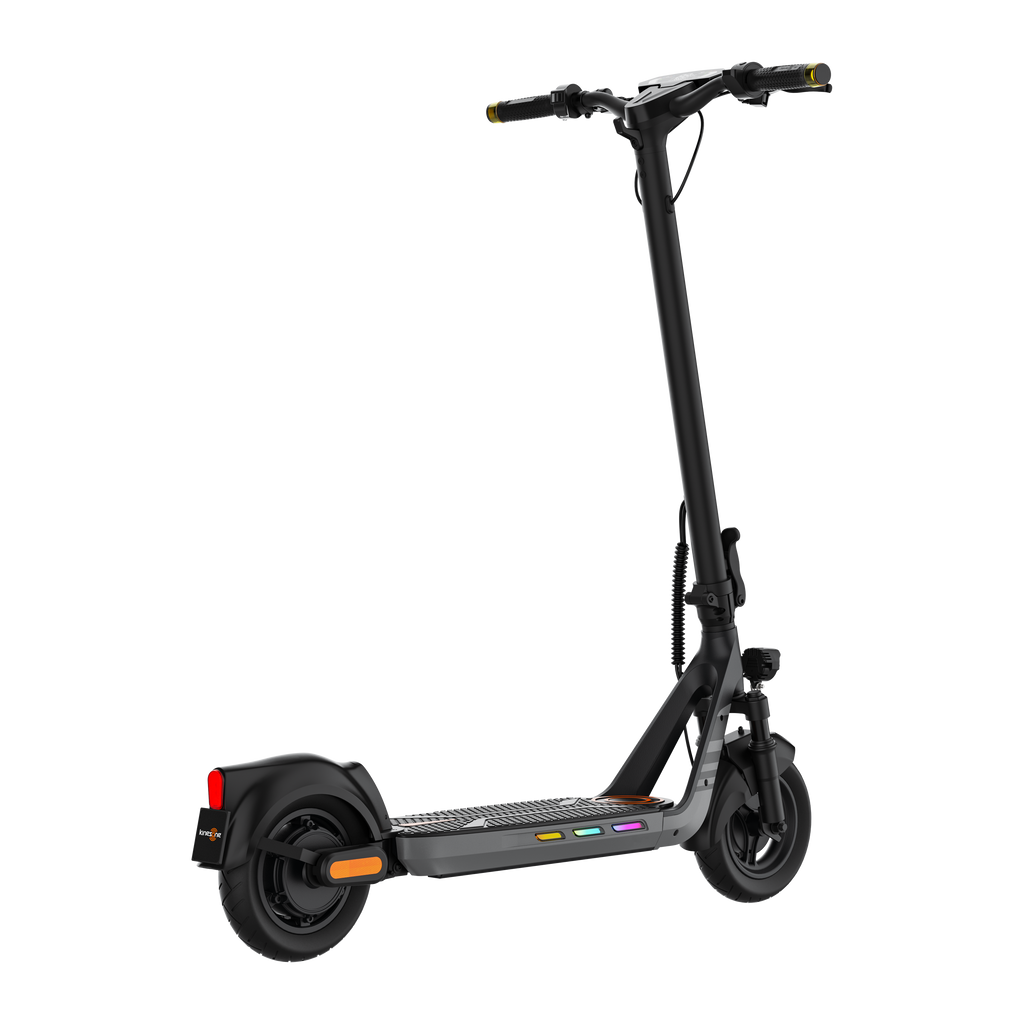

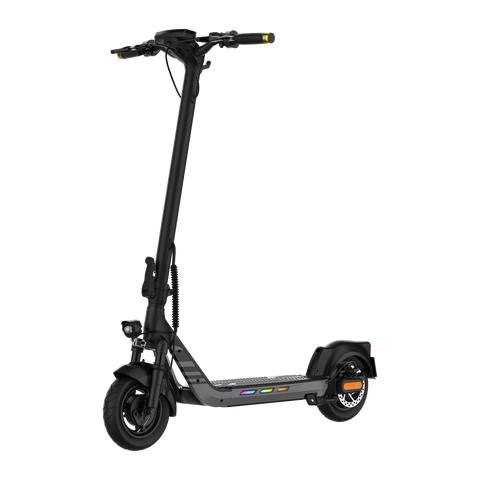

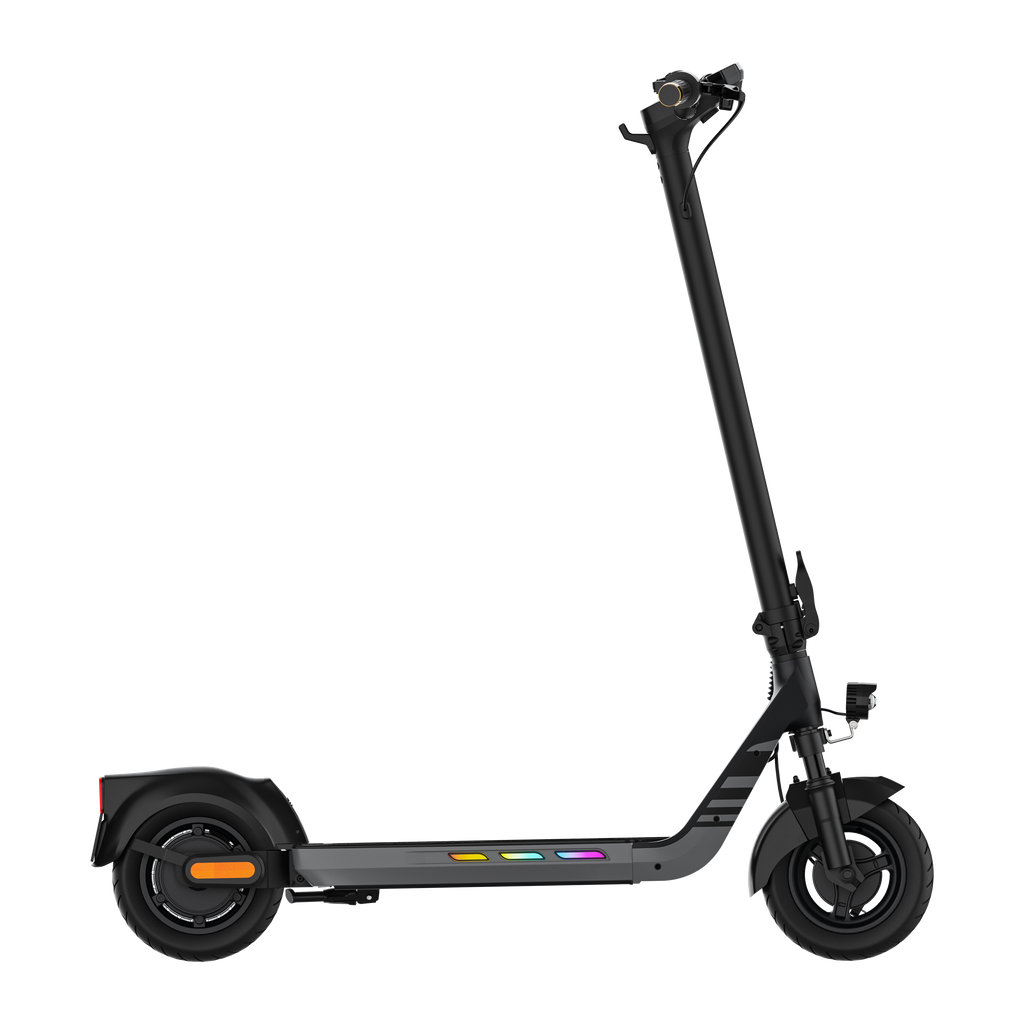

The KS - N14 Scooter combines robust performance with advanced safety features, ideal for urban commuters. Equipped with 10-inch pneumatic tires and dual suspension, it ensures a smooth ride across diverse terrains. Its 500W motor (900W peak) delivers reliable power, reaching speeds up to 40 km/h and climbing inclines up to 14°. The 48V battery offers a range up to 40 km, extendable to 60 km with the higher capacity option. Safety is prioritized with a front drum brake, rear disc brake, and E-ABS system, complemented by RGB side panel lights and front turn signals for enhanced visibility. Weighing just over 21 kg, it balances portability with durability.

Key Specifications:

  • Tires: 10-inch pneumatic tires for a smooth ride on various terrains.
  • Motor Power: 500W rated power, 900W peak power for steady performance.
  • Battery: 48V 10.4Ah(48v 14.5Ah option), providing a range of up to 40km(60km with 14.5Ah battery).
  • Top Speed: Up to 40km/h for quick and efficient commuting.
  • Climbing Ability: Handles inclines up to 14° with ease.
  • Braking System: Front drum brake, rear disc brake, and E-ABS for superior safety.
  • Suspension: Dual suspension for added comfort on bumpy roads.
  • Lighting System: RGB side panel lights and front turn signals for enhanced visibility.
  • Weight: 21.7kg(22.3kg option), balancing portability and durability.



KS-N14 Specification
Segment Items Specification
Performance Items
 Product Name KS Electric Scooter
Model No. KS-N14 KSE
Product Size
 Unfolding Size 120*68*127 (cm)
Folding Size 120*68*56 (cm)
Tyre Size 10" Tubeless tires
Packing Size 125*22*58 (cm)
Weight Net Weight 21.7
Riding Request
 MAX Loading 120KG
Applicable Age 16-50
Applicable Height 120-200
Reminder Mode Bell + Left & right signals
Accelerator Press Throttle
Brake EABS + Front Drum brake + Rear disc Brake
Whole Scooter
Parameter
 MAX Speed E: 15 km/h、D: 20km/h、S: 25km/h
Mileage 40 KM
Gradeability 20° / 36% (60KG,25±5℃)
Applicable Terrain Cement roads, asphalt roads, flat muddy road, steps not higher than 2cm, and trenches not exceeding 5cm
Working Temp working temp：-10℃~50℃； storage temp：-20~60℃
relative humidity：≤85% atmosphere pressure：86～106Kpa
Storage Temp -20-45
IP Level IP54
Light 6W
Gross Weight 25.5 KG
Material Gravity cast head tube A356-T6+ bottom plate profile Al6061
Battery Spec.
 Rated Voltage (VDC) 48.1V
Charge Voltage (VDC) 54.6V
Battery Capacity 10.4Ah/500Wh（13S4P, 52 Pcs）2600mAh Cell
BMS Spec. Temperature /Short Circuit /Low Voltage /Over Current /Over Charged Protection
Cycle life 300 charge-discharge cycles greater than 75% of rated capacity
Storage Time Abouot 12 Months（25℃in dry environment）
Battery Weight About 3kg
Controller Spec.
 Operating Voltage 36~56VDC
Current limit 25A
Motor Spec.
 Motor Type Brushless Hall DC Motor
Rated Power 500W
Peak Power 1000W
Charger Spec.
 Rated Power 109
In-put Voltage 100-240
Out-put Voltage 54.6V
Out-put Current 2A
DC line interface model Aviation plugφ8*1.6mm
产品认证 CCC,RoHs,CE,FCC,UL
Charging Time



5-6h
