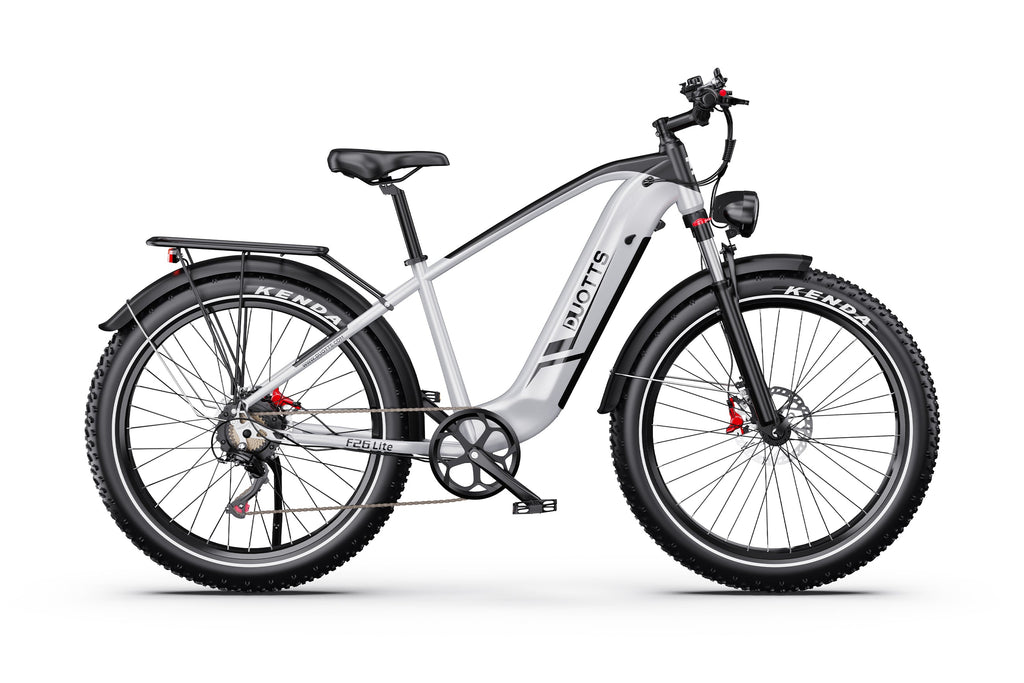

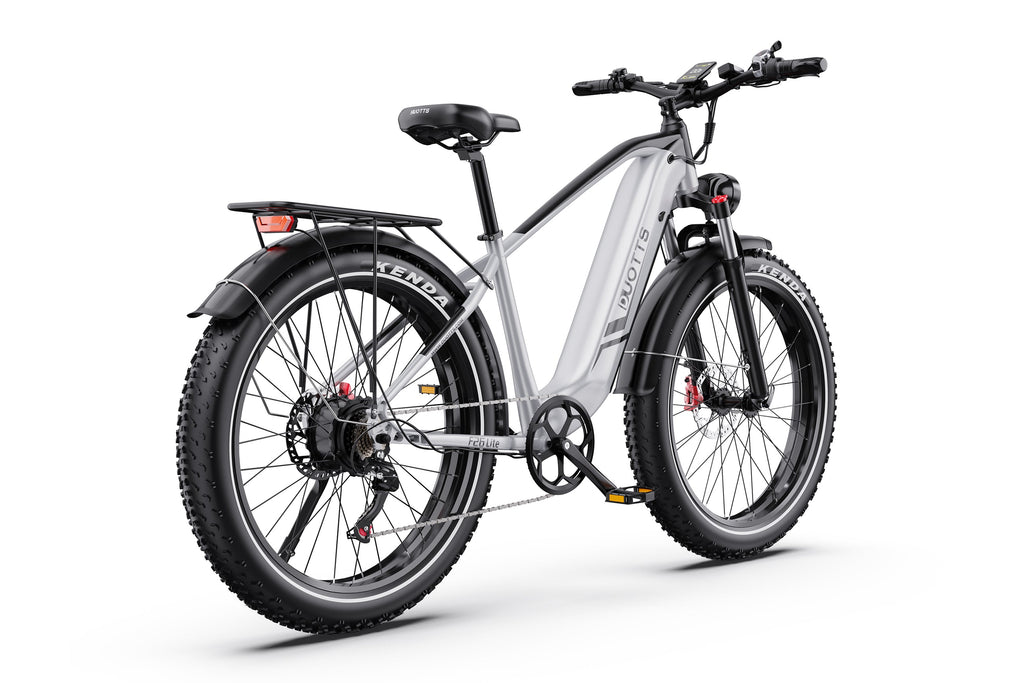

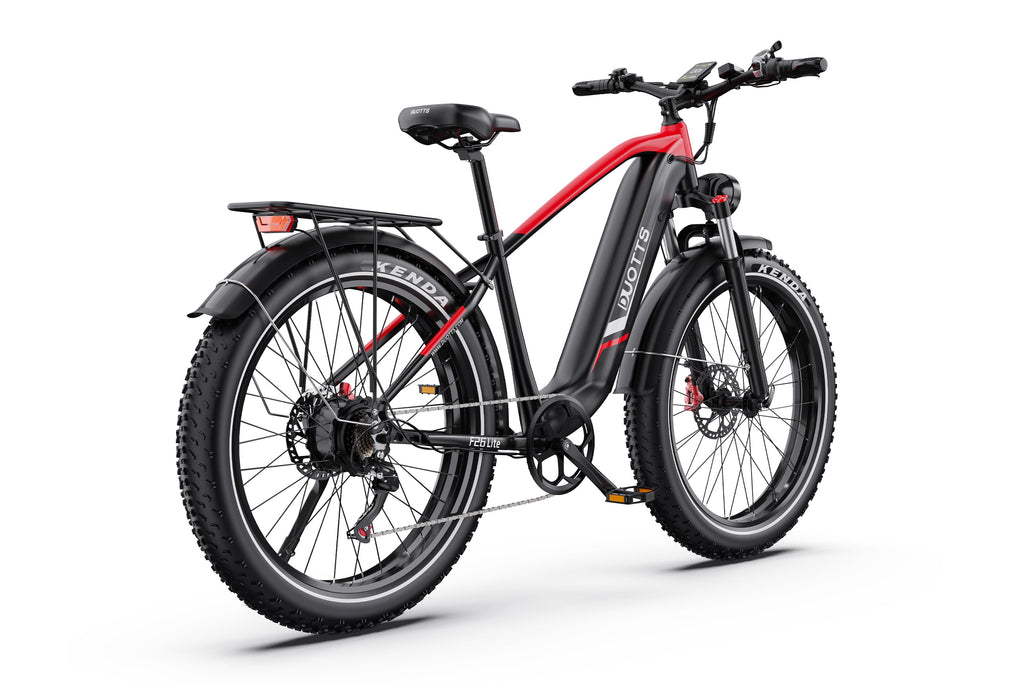

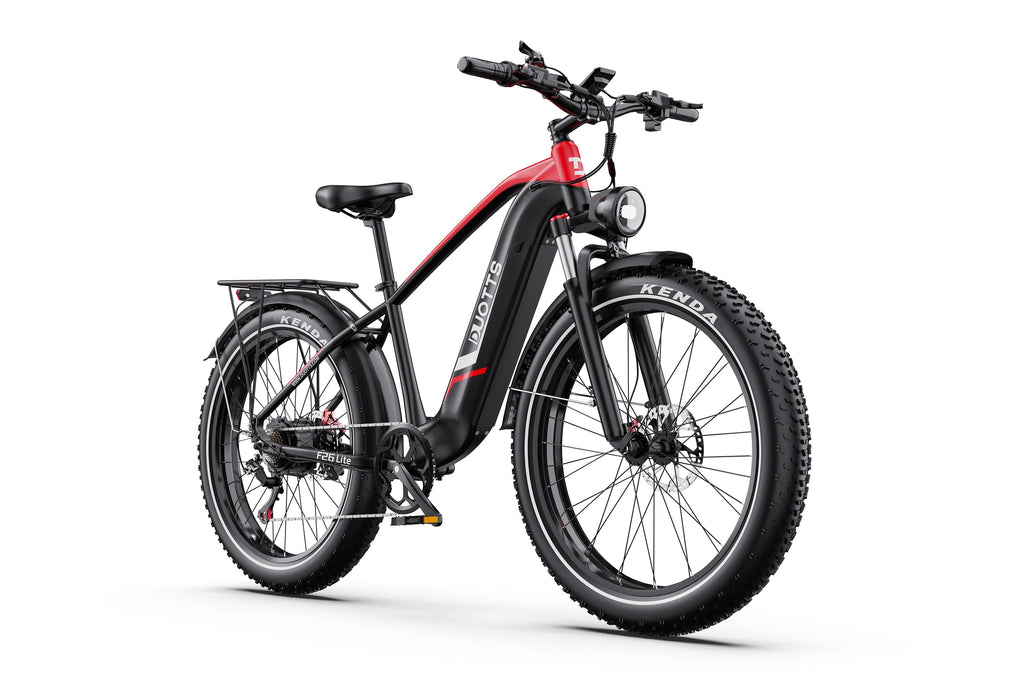

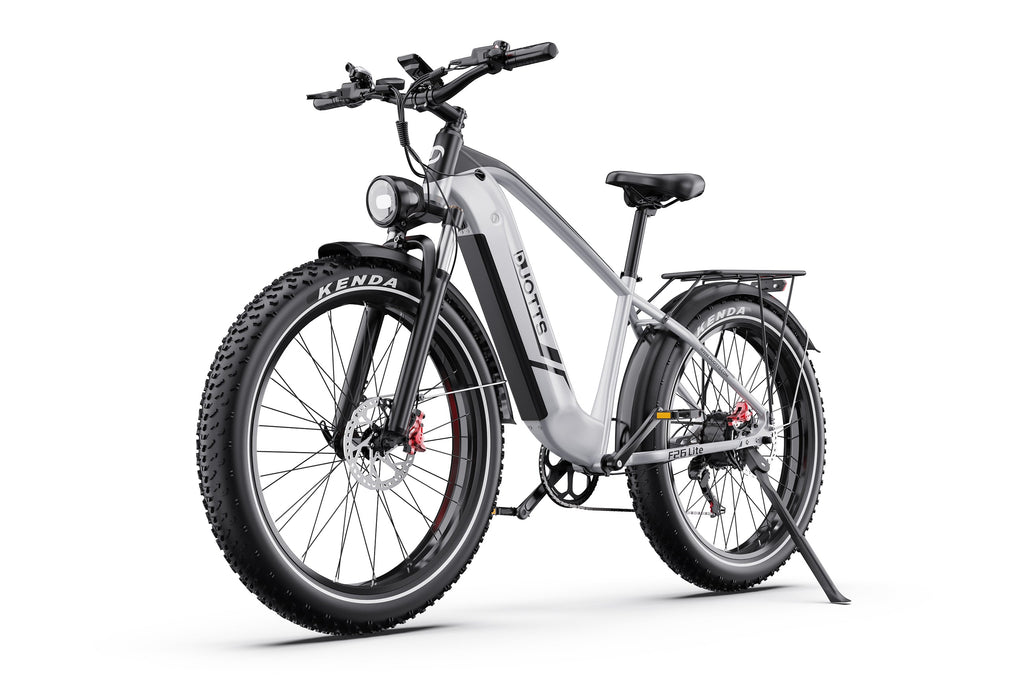

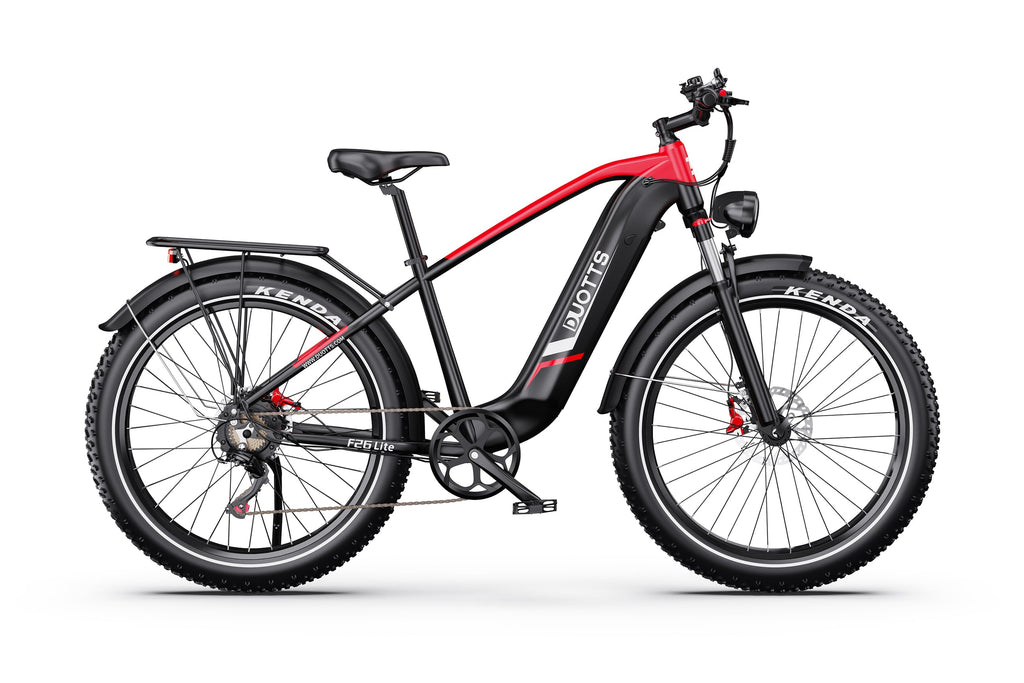

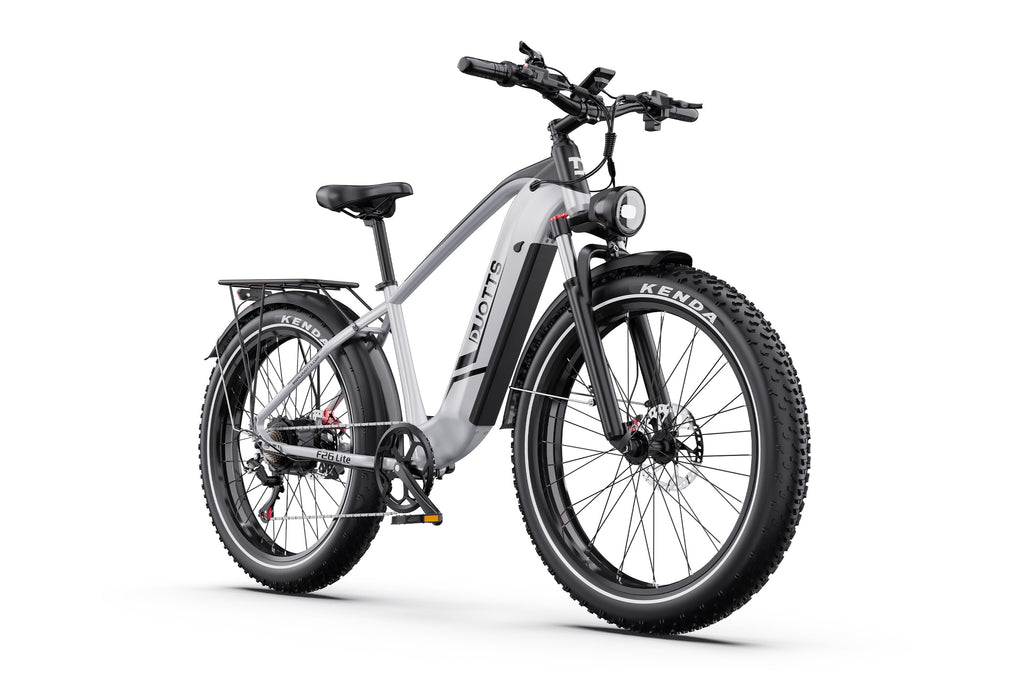

Exploring the F26Lite E-BIKE
The F26Lite combines sleek design with powerful performance, making every ride effortless and confident. Its 250W motor, hidden long-range battery, and fat Kenda tires work together to take you from city streets to rugged trails with ease. With reliable Shimano gears, hydraulic brakes, and bright integrated lights, the F26Lite is built for comfort, safety, and adventure.
Powerful Motor: 250W for Strong Performance
Equipped with a 48V 250W high-efficiency motor that delivers robust power. With a maximum torque of 65Nm, acceleration is quick and responsive.
Professional Gear System: Smooth Shifting
Equipped with Shimano Tourney 1×7-speed derailleur system. Allows effortless switching for different terrains and riding needs.
Suspension: Comfortable Ride Experience
Features an 80mm travel front fork with aluminum crown and steel stanchions. Absorbs bumps and shocks for a smoother ride.
Kenda Fat Tires: Grip and Stability Anywhere
Outfitted with 26×4.0 inch Kenda tires.Wide-tire design enhances balance and stability.30 TPI structure combines durability with comfort.
ZOOM Hydraulic Brakes: Strong and Reliable Stopping Power
Front and rear ZOOM dual-piston hydraulic disc brakes. 160mm rotors deliver fast and responsive braking.
Bright Taillight: Safety at Night
Integrated high-brightness brake taillight for visibility. Automatically lights up when braking to alert others.
| SPECIFICATIONS & FEATURES |
|
|
Motor
|
48V 250W motor |
| Torque | 65 Nm |
| Battery | 48V 18Ah battery |
| Battery Charger | 54.6V 2A charger |
| Charging Time | 8–9 hours |

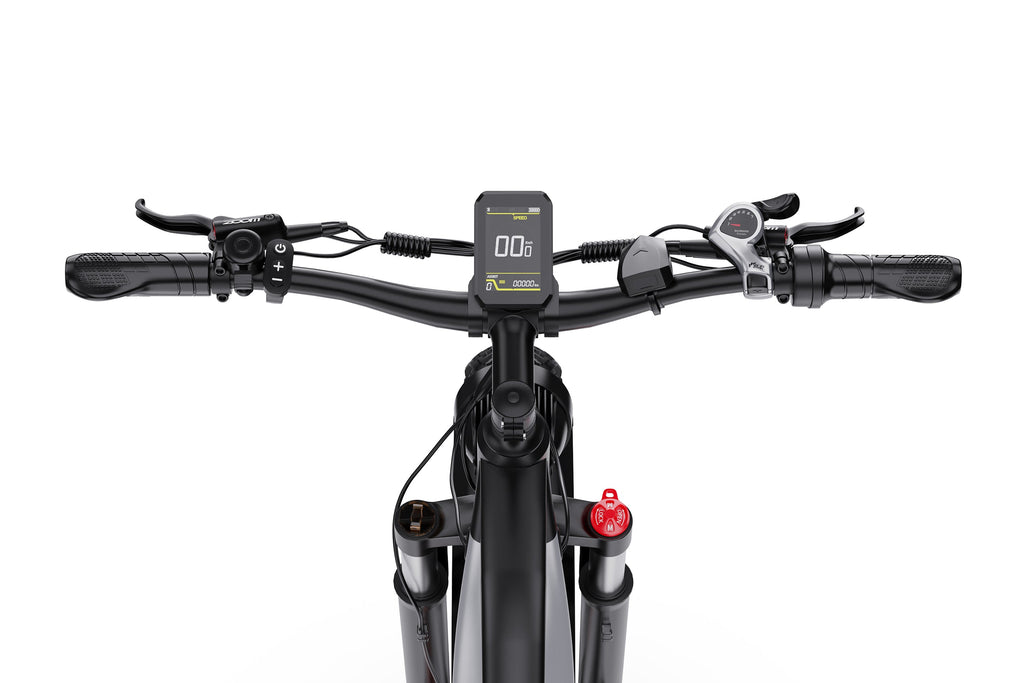

| Display | TW35 3.2" HD LCD display, Bluetooth-enabled for Duotts App |
| Max Range | Up to 90 km in assist mode (actual performance varies with temperature, terrain, rider weight, etc.) |
| Top Speed | 25 km/h |
| Max Climbing Angle | 30° |
|
Frame
|
Aluminium alloy frame |
| Handlebar | Aluminium alloy handlebar, 72 cm |
| Crank | Aluminium alloy crank, 170 mm |
| Transmission System | Shimano Tourney 1×7-speed derailleur system |
| Fork | Single crown suspension fork with aluminium crown and steel stanchions, 80 mm travel, non-adjustable, with lockout |
| Rear Shock | Not specified |
| Front Brake | ZOOM dual-piston hydraulic disc brake, 160 mm rotor |
| Rear Brake |
|
| Front Wheel | Kenda 26" x 4.0" tyre, 30 TPI, with inner tube |
| Rear Wheel | Kenda 26" x 4.0" tyre, 30 TPI, with inner tube |

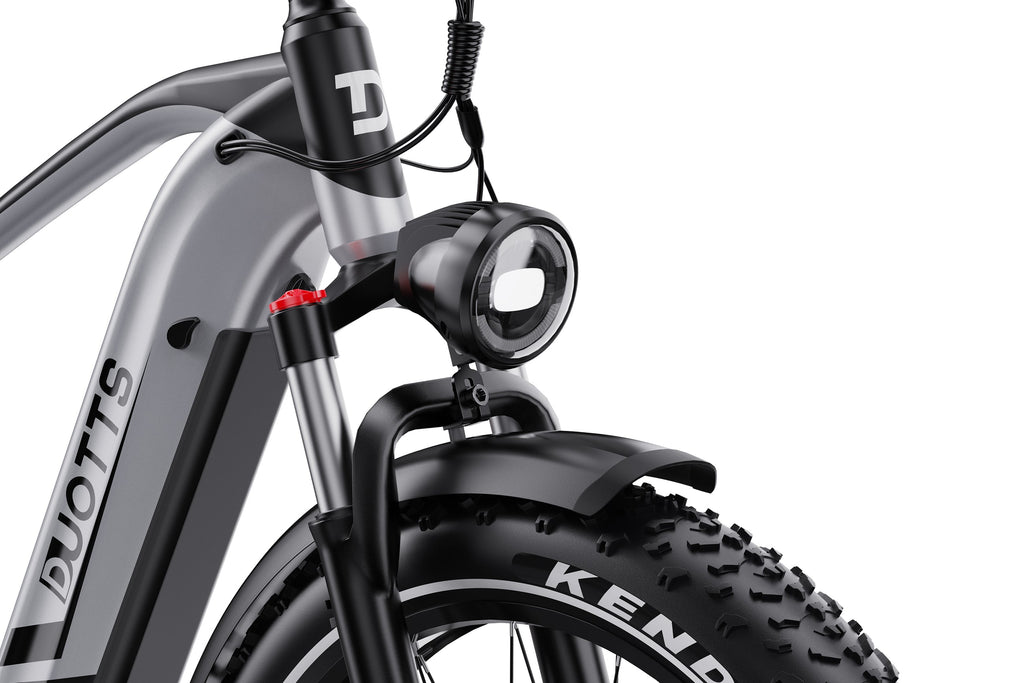

| Headlight | 70 LUX headlight, manually operated |
| Taillight | Integrated brake taillight |
| Pedal | Aluminium alloy pedals |
| Mudguard | Plastic full coverage mudguards |
| Rear Rack | Steel rear rack, max load 25 kg |
|
Bike Weight
|
34.81 kg |
| Certification | CE certified |
| Product Size | 1930*720*1180 mm |
| Pedal Assist | SystemSpeed sensor |
| Pedal Assist | Level0-5 levels |
| Recommended Rider Height | Suitable for riders from 170 cm to 200 cm |
| Max Load Capacity | 150 kg |
| Ingress Protection Rating | IPX4 |
| Operating Temperature | -10°C to 40°C |
