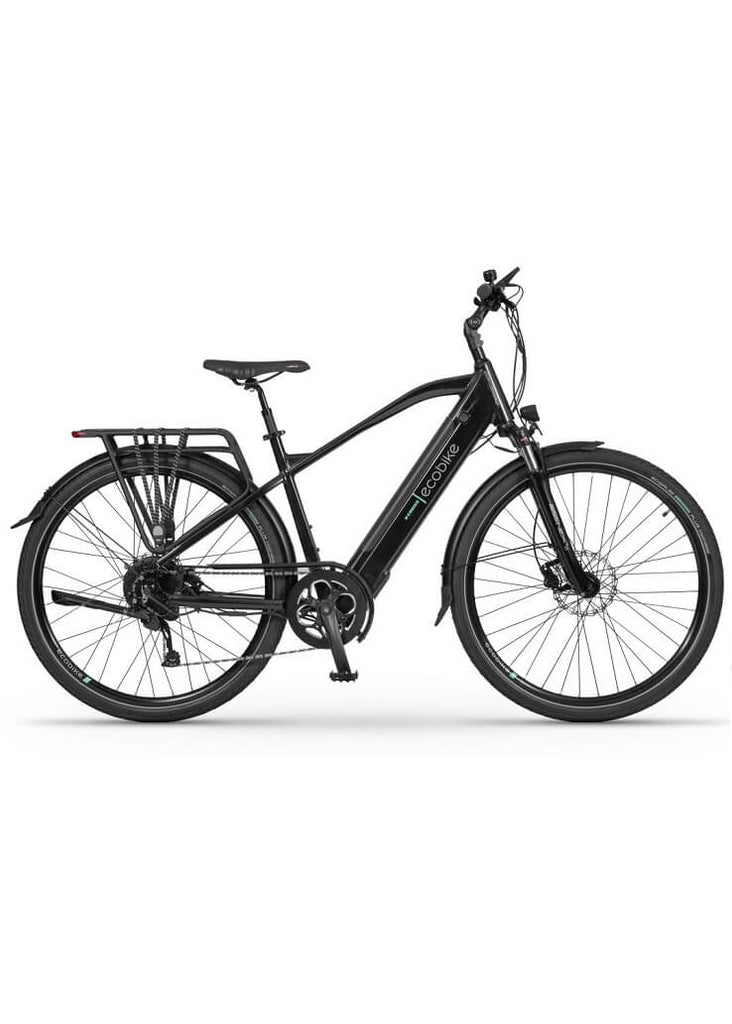

ECOBIKE X-CROSS L

  • Sale
  • €1,909.00
  • Regular price €2,099.00

Including Tax Shipping calculated at checkout.


Save with bike to work scheme

 Calculate how much you can save here!


Find out how to applied for bike through Bike To Work in our store.





The new, solid frame construction we use, will provide you with a comfortable position, and the battery completely hidden into it gives the whole thing unique style. The new ergonomics ensure a better grip of the battery as well as easier insertion and removal. You can choose between 13 Ah or 17.5 Ah.

The electrical system is a proven technology that has been used by us for years. It has been placed in the rear wheel hub Bafang motor. A powerful and reliable unit allows you to easily climb hills and even works well on very long journeys. A modern controller is responsible for the appropriate regulation of motor performance for your comfort and safety. You will especially like the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are even more functions at your disposal and configurable electric assist.

A solid trekking bike must have durable equipment. That’s why in the X-Cross you will find high-quality parts.

You will need fenders and a rack, a comfortable gel seat and complete lighting – we’ve also taken care of it all.

Hit the road with the Ecobike X-Cross and enjoy quality every mile.



Technical Specs



Weight                            25.3 kg (aluminium)

Maximum load          125 kg (including rack)

Frame                              19″ hydroformed alluminium

Tires                                 28 x 1.75 Schwalbe Energizer Plus

Wheel                             28 inches, reinforced rims and stainless spokes

Shifters                         Microshift RD XLE 10 Speed Long Cage

Grip                                 Microshift XLE Xpress Shifters 10 Indicator

Brakes                           Alhonga Hydraulic Brakes HJ-HT472

Fork                                SunTour SF15

Steerer param.        out. 28.6 mm / in. 25.4 mm / l. 247 mm

Saddle                           Selle Royal Lookin-A200UR0

Seat post                     Promax SP-886 (27,2 mm x 350 mm)

Handlebar                  Promax HB-3188

Handlebar stem     Promax MA-595S

Freewheel                 Microshift H-Series 10 Speed / 11-36

Crank                           Topwheel OUNCE248AC (48T x 170 mm)

Front hub                  KT-K68F-QR M9*13G*36H*100W

Support                      Feimin FP-B902W

Pedal                           Wellgo

Chain                          KMC e10 Sport EPT x122L + CL559EPT

Grip                             VELO VLG-776

Spoke                         SAPIM 13G / Front wheel: 290 mm / Rear wheel: 249 mm

Rear Light               Spaninga MLL XE

Front Light             Spaninga Kendo XE



Engine Specs

Voltage                          36 V

Mount                            rear wheel

Speed                             35 km / h limited to 25 km / h in accordance with EU standard EN 15194

Torque                           45 N.m

Maximum power   560 W

Power                           250 W

Motor’s brand         BAFANG

Computer.                  LISHUI SO-WZK0249

Max Power               560 W



Battery Specs

Fuses                            30 A

Lifespan                     > 700 charges

Charging time        4 – 8 hours

Type                              li-ion

Voltage                      36 V

Capacity ah            13 Ah – 16 Ah

Range                         60 – 130 km

Smart BMS              Yes

Capacity Wh          468 – 576 Wh

Cells brand              LG

Charger                     220-240V/42V / 2A / D type
