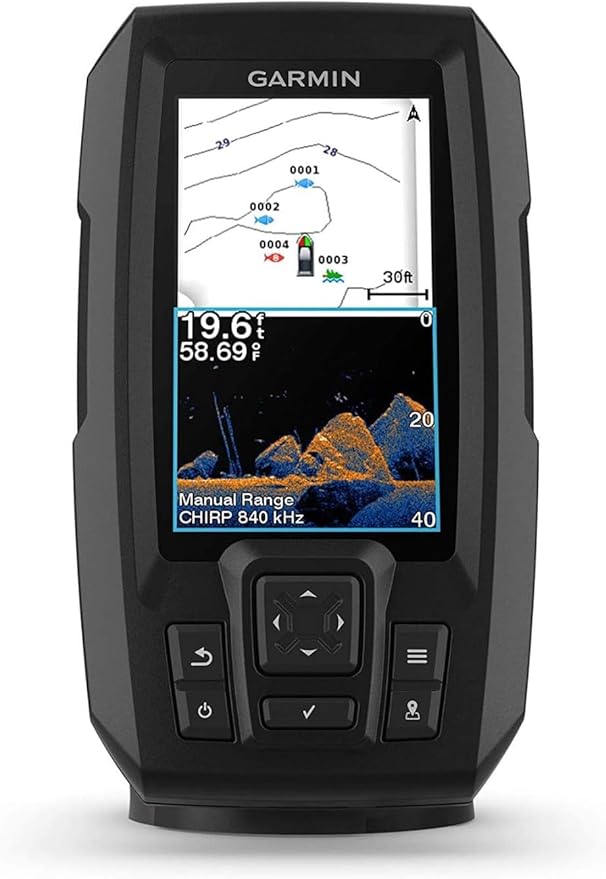

Garmin Striker Vivid 4cv

Garmin

Garmin Striker Vivid 4cv

  • Sale
  • €189.00

Including Tax Shipping calculated at checkout.

General
Dimension 3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm)
Weight 0.7 lbs (0.3 kg)
Water rating IPX7
Display Type QSVGA
Display Size 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm)
Display Resolution 272 X 480 pixels
Mounting Options flush, tilt/swivel
Input Keyed

Maps & memory
Waypoints/favourites/locations 5000
Track points 50,000
Tracks 50
Navigation Routes 100

Sensors
GPS
Has built-in receiver
Supports WAAS

Optional map support
Garmin Quickdraw Contours

Electrical features
POWER INPUT 12 to 20 Vdc
Typical current draw 0.40 A
Max current draw 1.5 A
Power Consumption 4.8

Sonar features & specifications
Displays sonar
Traditional sonar (dual frequency/beam) Built-in
ClearVü
Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Transmit power 300 W (RMS)
Bottom Lock (shows return from the bottom up)
Water Temperature Log

Networking & Connections
4-pin transducer ports 1

Fishfinder features
Split-screen zoom
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimises clutter, maximises targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included
Depth range shading

Security and Legal Information
Security updates until at least (YYYY-MM-DD) 2022-10-27
EU Data Act Information - Marine Chartplotters, Fishfinders, and Transducers

Additional
Additional
  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.40A
