SPECIFICATIONS & FEATURES
|
|
|
Bike Weight |
32.3 kg (71.2 lbs) |
| Gross Weight |
Approx. 40.3kg (88.8 lbs) |
| Max Load Capacity |
150kg (330 lbs) |
| Ride Height |
5'5" - 6'2" (165cm - 190cm) |
| Waterproof Ratings |
IPX7(Waterproof Wiring) |
| IPX6(Display & Lights) |
| IPX5(Motor & Controller) |
| IPX5(Battery Box) |
| Terrain |
Tarmac Roads & Bicycle Routes |
| Gravel-Paved Paths |
| Sandy Beaches & Grass |
| Country Roads & Paved Trails |
| Pedal Assist |
5 Levels |

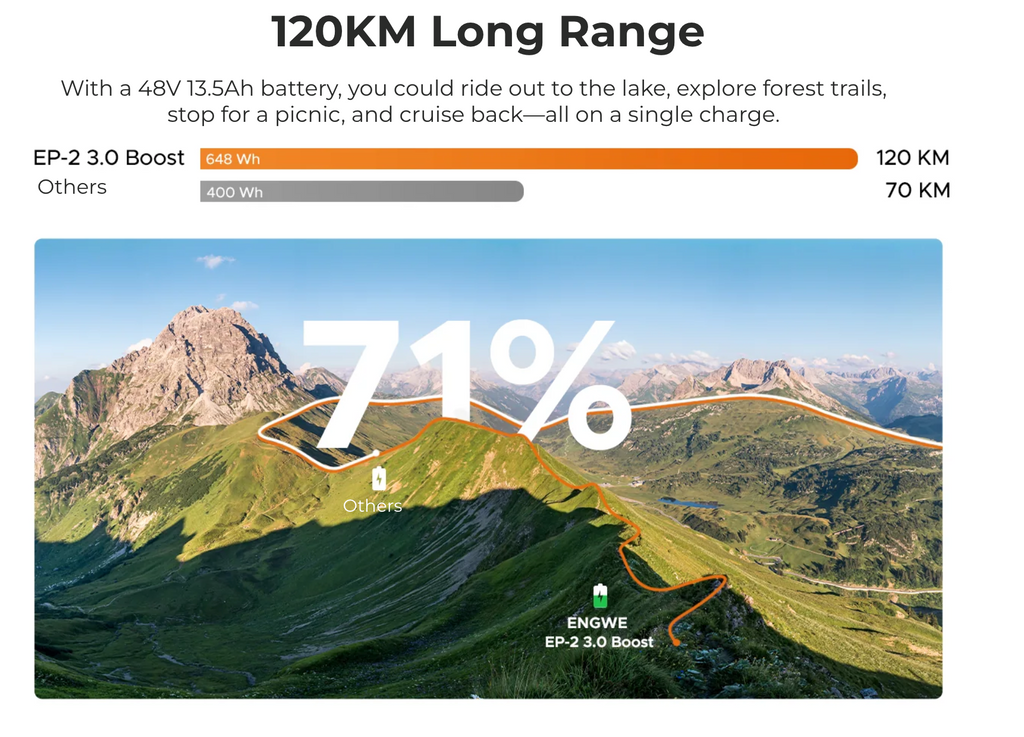

| Real-World Range |
120 km(PAS 1) |
| 100 km(PAS 3) |
| 80 km(PAS 5) |
| Fold |
Yes |
| Certification |
CE EN15194 by TUV certification |
| Frameset |
|
| Frame Style |
Foldable Frame |
| Frame Material |
![]()
| Step-through Design, Magnesium Alloy with Integrated Battery |
|
| Fork |
Hydraulic, Adjustable Lockout, Aluminum & Steel Construction |
| Front Suspension |
50mm Travel |
| Wheel Set |
|
| Tires |
20" × 4.0" Urban Hybrid Tires |
| Puncture Protection |
3mm Anti-Puncture Layer |
| Wheels |
20-inch, Double-Wall Aluminum, 36-Hole, 12-Gauge Spokes, Black |
| E-Bike System |
|
| Motor |
48V Hub Motor |
| Max Torque |
75Nm |
| Assist System |
Torque Sensor |

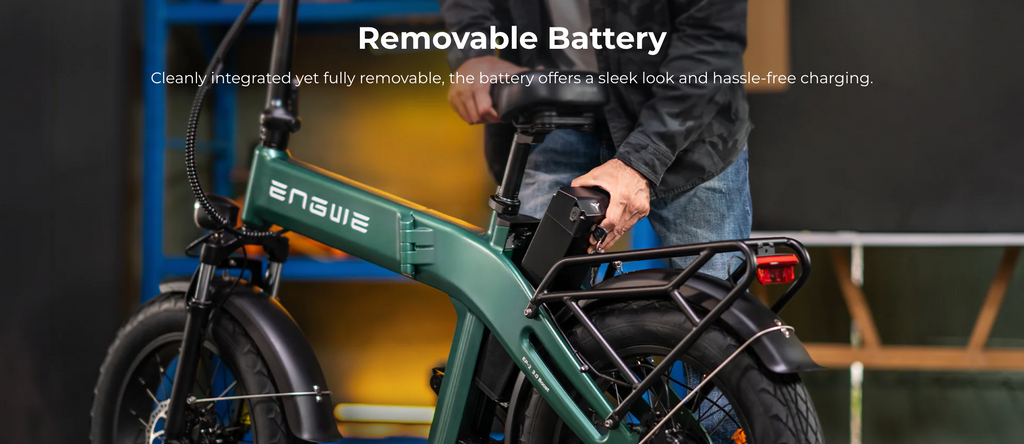

| Battery |
48V 13.5Ah (648Wh), 21700 Cells with BMS Protection |

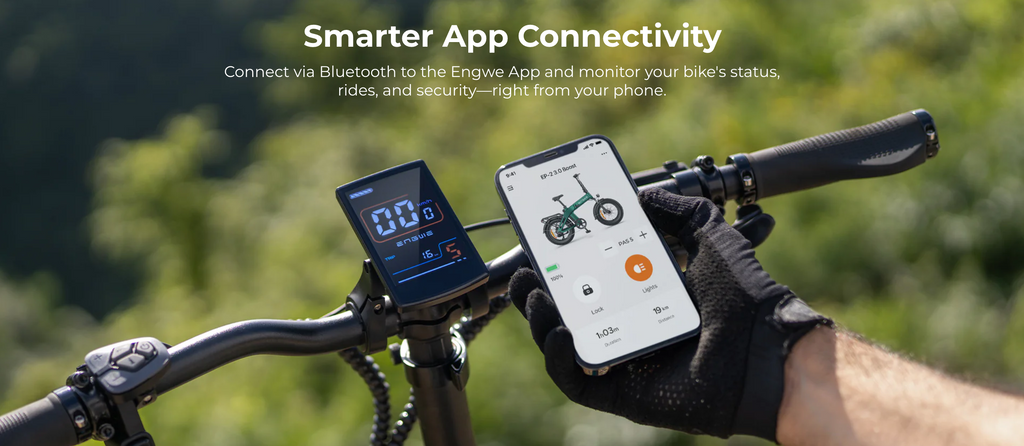

| Display |
3.5" LCD Color Display, ENGWE-Designed, Mid-Position , with Bluetooth |
| ENGWE App |
App Control |

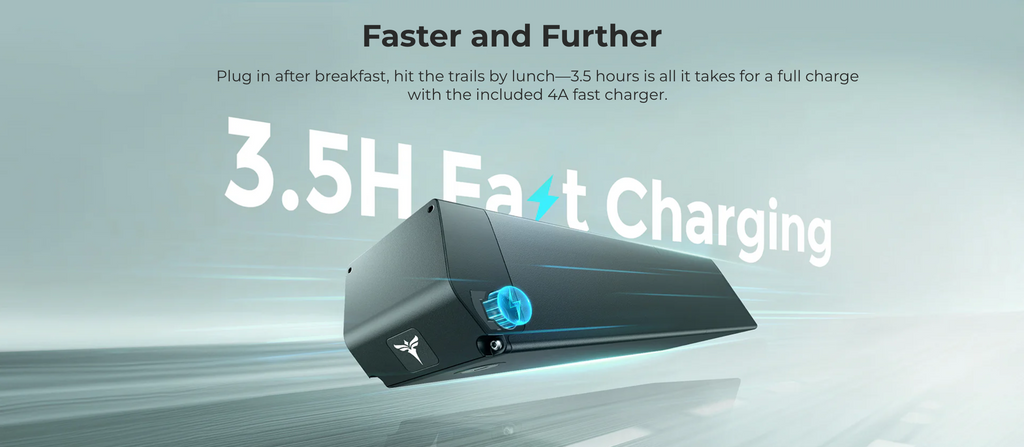

| Charger |
54.6V 4A Output |
| Front Light |
30 Lux with Integrated E-Horn |
| Rear Light |
Automatically brightens When Braking or Shaking |
| Brakes |
|
| Brake Type |
Hydraulic, Dual-Piston |
| Disc Rotor |
180mm Front & Rear |
| Drivetrain |
|
| Chain |
Anti-Rust Bicycle Chain, 1/2" x 3/32", 124 Links |
| Chainring |
48T |
| Crank |
170mm |
| Rear Derailleur |
Shimano Tourney RD-TY300, 7-Speed |
| Shifter |
Shimano SL-M315-7R |
| Cassette |
7-Speed, 14T-28T |
| Pedals |
Boron Steel, Non-Foldable |
| Cockpit |
|
| Saddle |
ENGWE Soft Saddle |
| Seat Post |
10-Level Adjustable |
| Handlebars |
680mm Width |
| Stem |
Foldable |
| Seat Clamp |
Quick-Release |
