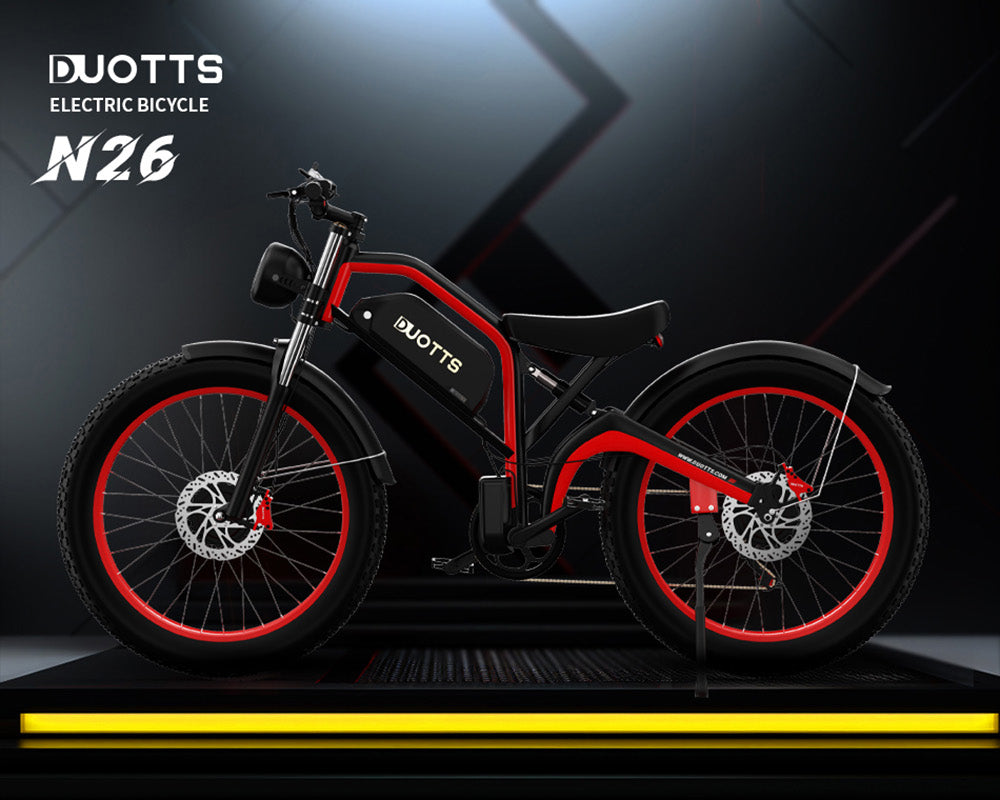

The DUOTTS N26 is a distinctive all-terrain electric bike with a 48V 20Ah Samsung battery, long-range capability and a bold motorcycle-inspired frame design.
Full suspension, wide Kenda tyres, Shimano seven-speed gearing and hydraulic disc brakes provide comfort and control. The Bluetooth display connects to the Duotts App.
SPECIFICATIONS & FEATURES
| Motor (EU version) | 48V 250W |
| Torque | 65 Nm |
| Battery | 48V 20Ah Samsung cells (960Wh) |
| Charger | 54.6V 3A |
| Charging time | 6–7 hours |
| Display | XF009 4.5-inch HD LCD; Bluetooth connection to Duotts App; Type-C charging port |
| Assisted range | Up to 120 km; varies with terrain, temperature, rider weight and riding mode |
| Top speed (EU version) | 25 km/h |
| Pedal assist sensor | Speed sensor |
| Assist levels | 0–5 |
| Maximum climbing angle | 30° (manufacturer rating) |
| Frame | Aluminium alloy |
| Handlebar | Aluminium alloy, 71 cm |
| Crank | Aluminium alloy, 170 mm |
| Gearing | Shimano Tourney 1 × 7-speed |
| Front suspension | Dual-crown fork; aluminium crown and steel stanchions; 60 mm travel, adjustable with lockout |
| Rear suspension | 1200 lb coil spring shock; no adjustment or lockout |
| Front brake | ZOOM two-piston hydraulic disc, 203 mm rotor |
| Rear brake | ZOOM two-piston hydraulic disc, 203 mm rotor |
| Tyres (front and rear) | Kenda 26 × 4.0 inches, 30 TPI, inner tubes |
| Headlight | 70 lux, manual control |
| Rear light | Integrated brake light |
| Pedals | Aluminium alloy |
| Mudguards | Full-coverage plastic |
| Bike weight | 39.16 kg |
| Overall dimensions (length × height × width) | 195 × 120 × 73 cm |
| Recommended rider height | 170–200 cm |
| Maximum load | 150 kg |
| Water resistance | IPX4 |
| Operating temperature | −10°C to 40°C |
| Certification | CE (manufacturer specification) |
| Maximum seat height | 87 cm |
| Wheelbase | 123 cm |
| Seat stay | 37 cm |
| Seat tube | 43 cm |
| Top tube | 41 cm |
| Fork length | 71 cm |
| Wheel height | 73 cm |
| Included accessories | Charger, manual, tools, pedals, pump and phone bag |
Specifications follow Duotts’ current N26 technical sheet for the EU version. Components may vary by production batch.
